3D/2D Software System – MPDS4


The MPDS4 Software System

           From CAD Schroer, a global software development company.

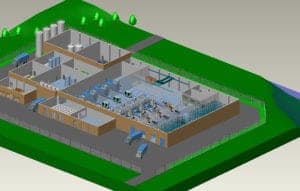

The MPDS4 is a powerful 3D/2D steam design software system for plant design and factory layout.

Providing a comprehensive solution for projects of all sizes, and caters for all major design disciplines. Its advanced capabilities such as automated interference detection play a vital role in quality assurance.

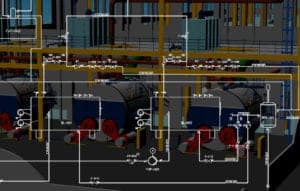

MPDS4 also quickly delivers parts lists and 2D drawings for procurement and construction, including automatically generated piping isometric drawings, ready for fabrication. 3D walk-throughs facilitate interactive design reviews with project stakeholders. A range of industry standard 2D & 3D interfaces are also included to enable data exchange with customers and suppliers.


This new software system is now available to all our Optimise customers during design consultations with our Engineering Manager Dave and CAD Designer.

Go to the MPDS4 Software tab to find and read about the MPDS4 process.

Out thanks to CAD Schroer for their extensive consultancy, support,  development, software support and maintenance services.
